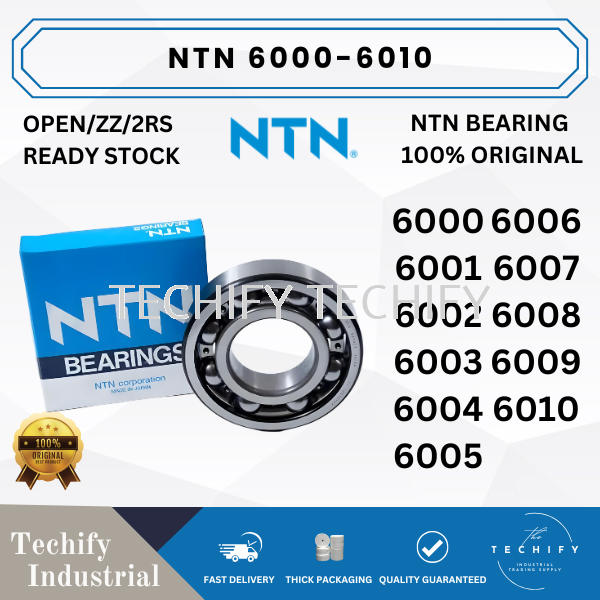

NTN 6000 - 6010 Series Deep Groove Ball Bearings
Specifications
Details

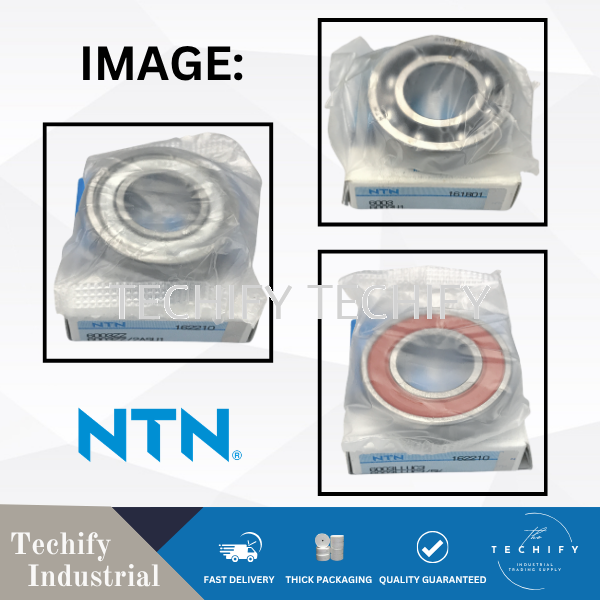

NTN 6000 Series Deep Groove Ball Bearing – Original Open, 2RS & ZZ Motor Bearing for Industrial and Mechanical Applications
The NTN 6000 Series Deep Groove Ball Bearing is a high-quality and reliable bearing solution designed for electric motors, industrial machinery, automotive components, and mechanical applications. Available in 6000, 6001, 6002, 6003, 6004, 6005, 6006, 6007, 6008, 6009 and 6010 sizes, this Original NTN Bearing delivers smooth rotational performance, reduced friction, and long service life under continuous operating conditions.
Manufactured with steel cage construction and normal precision class, the NTN deep groove ball bearing is suitable for a wide range of industrial and maintenance uses. It is offered in Open, Rubber Seal (2RS), and Metal Shield (ZZ) sealing types, allowing users to choose the most suitable protection level according to operating environments. With CN and C3 radial internal clearance options, these bearings support stable performance in both normal and high-speed applications.
The NTN Bearing series is widely trusted for its durability, precision, and low noise operation, making it ideal for motors, pumps, gear systems, industrial equipment, and automotive repair applications. Whether for replacement or new installations, this bearing series ensures dependable operation and long-term mechanical efficiency.
Key Features & Benefits
- 100% Original NTN Bearing for dependable quality and durability
- Deep Groove Ball Bearing Design for smooth high-speed rotation

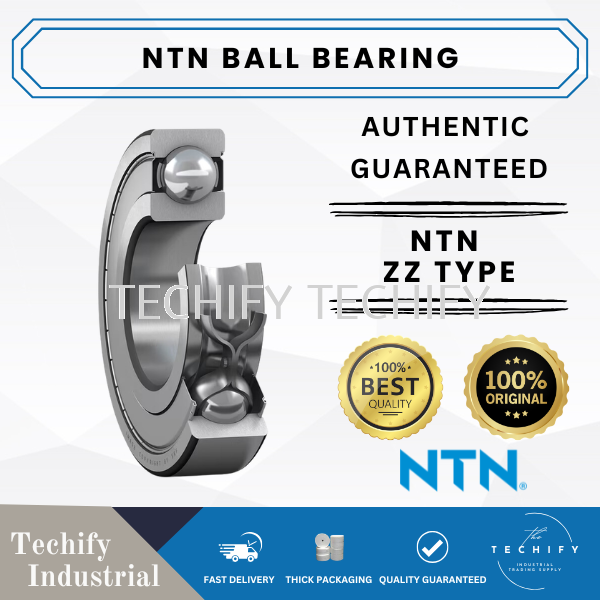

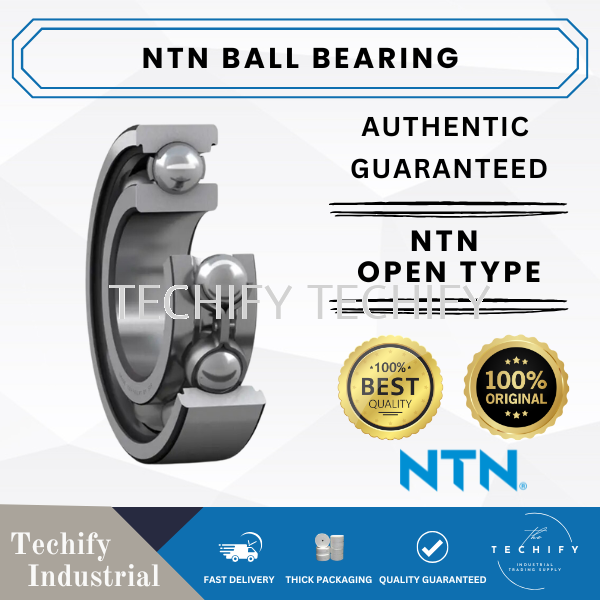

- Available in Open, 2RS Rubber Seal, and ZZ Metal Shield types
- Steel Cage Material provides strong internal support
- Normal Precision Class suitable for industrial and motor applications
- CN / C3 Internal Clearance Options for different operating conditions
- Suitable for Electric Motors, Pumps, Machinery, Automotive & Mechanical Systems
Available Sizes & Specifications
| Bearing Code | ID (mm) | OD (mm) | Thickness (mm) |
| 6000 | 10 | 26 | 8 |
| 6001 | 12 | 28 | 8 |
| 6002 | 15 | 32 | 9 |
| 6003 | 17 | 35 | 10 |
| 6004 | 20 | 42 | 12 |
| 6005 | 25 | 47 | 12 |
| 6006 | 30 | 55 | 13 |
| 6007 | 35 | 62 | 14 |
| 6008 | 40 | 68 | 15 |
| 6009 | 45 | 75 | 16 |
| 6010 | 50 | 80 | 16 |
Product Specifications
- Bore Type: Cylindrical
- Primary Unit: PC
- Sealing Type: Open / Rubber Seal / Metal Shield
- Cage Material: Steel
- Precision Class: Normal Class
- Radial Internal Clearance: CN / C3
